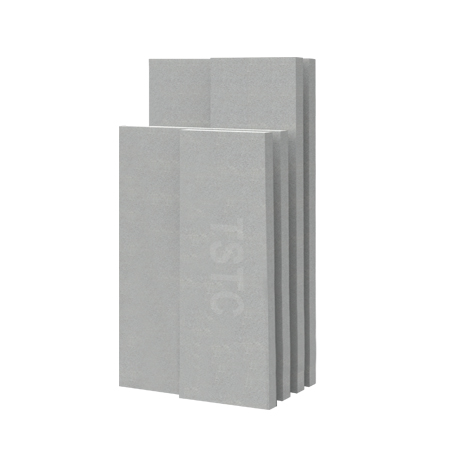

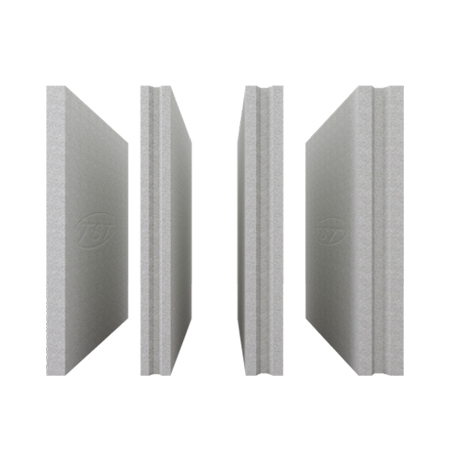

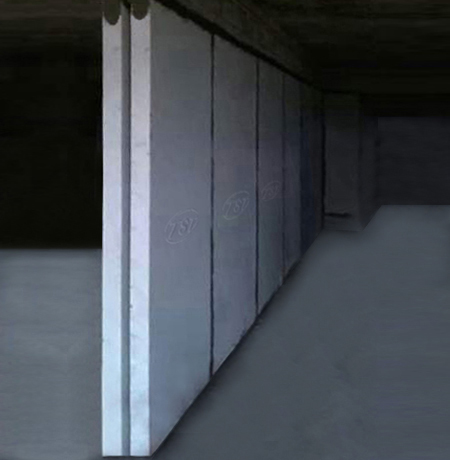

TSTC Ceramic Household Separating Wall, has been calcined at 1200℃, with independent airtight pore structure which is light and airtight, make the wall panel had the features like sound insulation, heat preservation, acid &alkali resistance, corrosion resistance, oxidation resistance, excellent performance and could be durable for at least 100 years.
Dimension of TSTC Ceramic Household Separating Wall
Composited wall body with double-layer of 160mm (single layer 80mm),
Hollow space of Wall Panel is 40mm,
Total wall thickness is 200mm .(80x2+40=200mm).
Regular dimension : 600x3000mm,900x3000mm,1200x3000mm. (Customized Service could be provided).
Advantages Of TSTC Ceramic Household Separating Wall
1. Light: around 10% construction materials saved by utilizing HANKING wall plates compared with traditional solid wall body, and lots of construction loads reduced.
2. Standard: standard construction, convenient and efficient, 50% construction wastes lessened.
3. Sound proof: light body while high proof level sound effect.
4. Environment-friendly: high temperature firing products, long duration and green nontoxic.
5. High-efficient: better coefficient of heat insulation, making each space be permanently high efficient and energy-saving.
6. Easy-to-use: high hanging force, being able to bear various hangers of indoor and outdoor.
7. Healthy: anti-microbial and mould proof, to help protect the damage of health.
8. Anti-crack: sintering product with extreme low shrinkage value and effective anti-crack.
9. High strength: same performance but thinner volume, increasing 3-5% actual usable area.
10. Maintenance free: product of whole ceramics material with extreme low moisture content and water absorption and has a long-acting and stable performance.

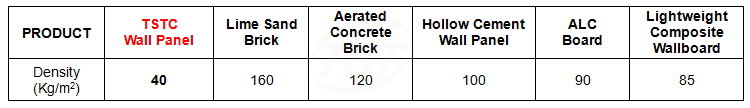

The average weight of TSTC Ceramic Household Separating Wall Panel is 40kg/m² ( areal density ), which is the lightest solid wall material in the world up to now, only 1/3 of the weight of block wall and 1/2 of the weight of cement hollow wall panel. It has lightweight performance, but the compressive strength can reach 6-8 Mpa, which is much higher than other materials, so it is absolutely an ideal wall material.

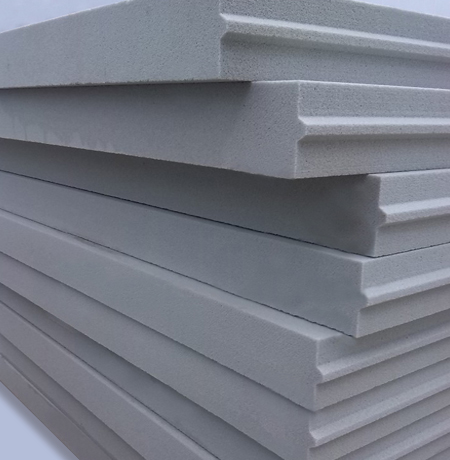

TSTC foamed ceramic wall panel has the features of light weight, large size, free leveling, thin plastering, no shrinkage and crack resistance. It realizes the standardized construction and greatly improves the efficiency of stonework. The construction speed is 2 times of the traditional wall panel and 5 times of the traditional block. It can shorten the period of stonework, save a lot of labor cost and improve economic benefit.

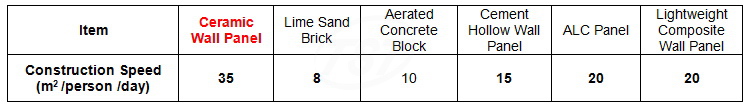

Comparison of Construction speed Between Ceramic Wall Panel and other Wall Panels

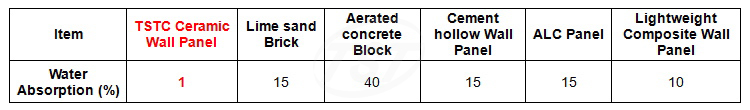

Comparison of Water Absorption between Ceramic Wall Panel and other Wall Panels

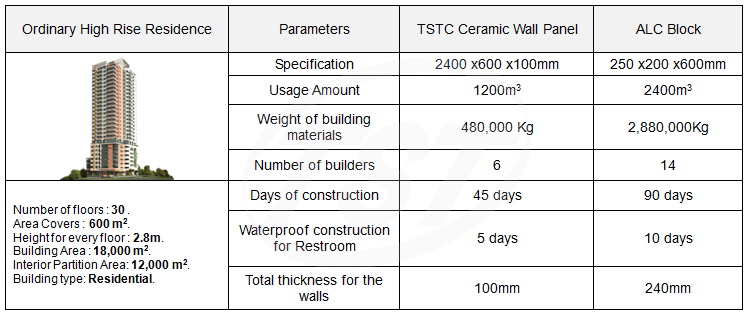

EXAMPLE - Comparison of Building Materials for Residence
Value Added Calculation.
1. Flatness . TSTC foamed ceramic wall panel possess the high flatness, no need to plastering, could save about 24,000m2 of plastering area.
2. Weight . TSTC foamed ceramic wall panel is much more lighter, which could reduce the weight for about 2,400,000 Kg for the whole building .
3. Usage Area . TSTC foamed ceramic wall panel is much more thinner, could save at least 1,680m2 usage area for the whole building .
4. Number of Builders . To use TSTC foamed ceramic wall panel, 8 construction people could be saved .
5. Construction Period . To use TSTC foamed ceramic wall panel, about 45 days could be saved for the construction period .
6. Maintenance Free . TSTC foamed ceramic wall panel is produced under the high temperature roasting (1150 ºC ~ 1200 ºC), much more stable, anti-crack, low water absorption, no need to maintenance, which means the big money for the subsequent maintenance could be saved .
Cost Saving Calculation ( EXAMPLE - Standards in China).
1. Cost of Plastering . 15RMB / m2, Total 15 x24,000= 360,000 RMB. (About USD 56,000 ).
2. Labor Cost . About 200 RMB /day in China. 8 x200 x50 = 80,000 RMB. (About USD 12,500 ).
3. Added Usage Area. Take 8,000RMB/m2 for example (In some cities, the price maybe 3 or 5 times), 8,000 x1,680=13,440,000 RMB. (About USD 2,100,000),
4. Structural Cost . Weight Reduced for the whole building is about 2,400,000 Kg , which also greatly reduces the load of the building as well as the Structural Cost.
